PowerBar V3 Nichia NVSW219F-V2 LED Module Aluminium Warm White 3000K CRI90 2900lm 12 LEDs 700mA 23.6W 28.6cm
- High-power LED module on aluminium core for maximum light per square metre
- Luminous flux 2900 lm (10150 lm/m) at 3000K, CRI 90
- Power consumption 23.6 W at an efficacy of 123 lm/W
- 12 brand LEDs from Nichia
- Beam angle 90°
- Dimensions 286 x 28.5 x 4.5 mm
- Made in Germany with brand LEDs, automated placement and full electrical testing
- 5 years warranty
PowerBar V3 Nichia NVSW219F-V2 LED Module Aluminium Warm White 3000K CRI90 2900lm 12 LEDs 700mA 23.6W 28.6cm

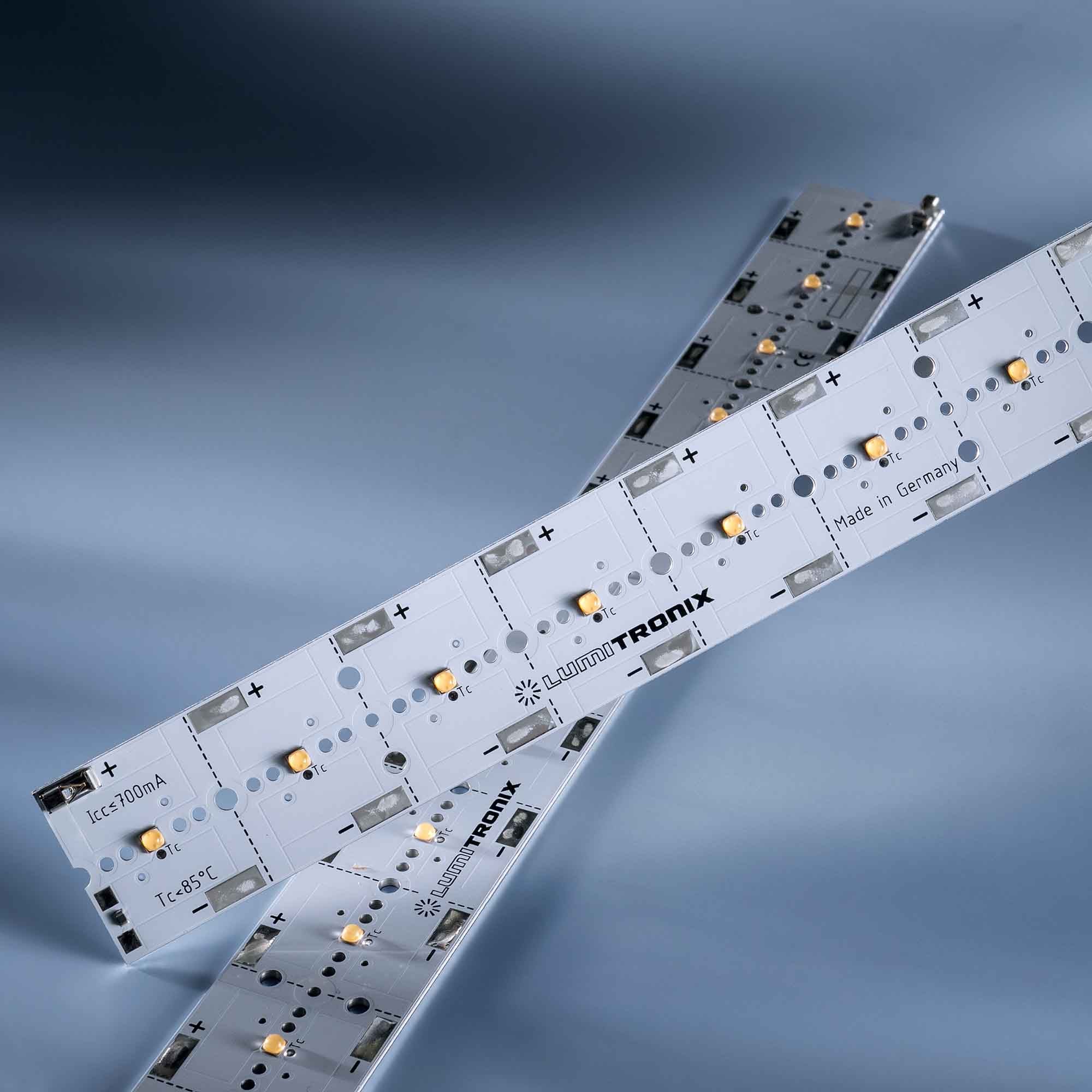

This product is a high-power LED module on an aluminium circuit board, equipped with 12 LEDs from Nichia (NVSW219F-V2 series) and delivering 2900 lm at 3000K with CRI 90, 23.6 W of power consumption and an efficacy of 123 lm/W.
The PowerBar V3 is our platform for applications that need a lot of light per square metre: plant growth, industrial and machine lighting, medical devices, architectural floodlighting and high-output spotlights. The metal-core board is the key component here. It carries the heat of twelve high-power LEDs straight into the heat sink, which keeps the junction temperature low enough to drive them at 700 mA and beyond without sacrificing lifetime. An NTC resistor is fitted on the board so that an external control unit can monitor the temperature.
The bar consists of twelve connected segments that can be separated with a saw, so a shorter module can be produced from stock without a custom order. Terminals on the first and last segment allow a solderless connection. Mounting holes for lenses are part of the board layout, and a wide range of LEDiL and Carclo optics is compatible, which turns the same module into a narrow spot or a wide flood depending on the optic chosen.
Matching accessories are available for the complete system, including heat sink, thermally conductive adhesive pad, mounting clips, rod lenses and covers, so a finished luminaire can be assembled from stock components.
Why we build with Nichia LEDs
Nichia is a major Japanese LED manufacturer and one of the companies closely associated with the development and commercialisation of high-brightness blue and white LED technology. Its professional lighting LEDs are selected for well-documented optical and electrical characteristics, tight binning options and long-term characterisation. For a luminaire maker, that means the PCB, driver and thermal design can be built around defined forward-voltage, flux, colour and temperature limits instead of anonymous components whose behaviour may change from one batch to the next.
The PowerBar V3 comes with a 5-year warranty. A warranty period of that length is only possible because the components, the thermal design and the production process are under our own control, and it gives you real investment security on a component that will be built into an installation.
Made in Germany – for reliable quality
This Lumistrips light engine is developed and manufactured at our production site in Germany. The PCB is assembled on controlled SMD equipment and the finished boards are visually inspected and electrically tested. We use specified, traceable LED components and defined production parameters so that current, voltage, light output and colour remain reproducible from batch to batch.
The difference from generic LED tape or anonymous modules is control of the complete light engine: copper layout, soldering quality, LED spacing, component selection and thermal path are defined together. That gives luminaire makers a more predictable component for continuous operation, easier qualification and repeat orders that behave like the original build.
Technical features
- 12 LEDs from Nichia (NVSW219F-V2)
- Colour temperature: 3000K (Warm White)
- Colour rendering index: CRI 90
- Luminous flux: 2900 lm (typical)
- Luminous flux per metre: 10150 lm/m
- Power consumption: 23.6 W
- Luminous efficacy: 123 lm/W
- Operating point: 700 mA at 33.8 V
- Beam angle: 90°
- Board type: Rigid
- Dimensions: 286 x 28.5 x 4.5 mm
- Dimmable
- Rated lifetime: 60000 h
- Warranty: 5 years
Applications
- Spotlights and downlights
- Industrial and machine lighting
- Shop and accent lighting
- Architectural lighting
- Custom luminaire development
| SKU | 42308 |
|---|---|
| Color | Blanco calido |
| Temperatura del color | 3000K |
| Ind. reproduccion del Color | 90 |
| Flujo luminoso por metro | 10150 |
| Bright like (W) | 194 |
| Flujo luminoso Tipo (lm) | 2900 |
| Eficacia luminosa | 123 |
| Energia (W) | 23.6 |
| Regulable | Si |
| Angulo de vision | 90° |
| Garantia (meses) | 60 |
| Vida util residencial, 3h diario (anos) | 55 |
| Vida util del producto (horas) | 60000 |
| Vida util comercial, 12h diario (anos) | 14 |
| Codigo de producto del fabricante | 42308 |
| Gama de productos | PowerBar V3 Modulo de LED |
| Tipo de tira | Rigido |
| Numero de LEDs por unidad de venta | 12 |
| Diimensiones | 286 x 28.5 x 4.5 mm |
| Dimensiones: Longitud (cm) | 28.6 |
| Dimensiones: Ancho (mm) | 28.5 |
| Dimensiones: Altura (mm) | 4.5 |
| Fabricante | Lumistrips |
| Tensión directa (V) | 33.8 |
