Nichia NV4W144ART SMD LED Cold White 5700K CRI80 1202lm 700mA 8.33W with PCB (Star)
- High-quality SMD LED for professional lighting
- Luminous flux 1202 lm at 5700K, CRI 80
- Power consumption 8.33 W at an efficacy of 144 lm/W
- Original Nichia LED package
- Dimensions 20 x 20 mm
Nichia NV4W144ART SMD LED Cold White 5700K CRI80 1202lm 700mA 8.33W with PCB (Star)
This product is a high-quality SMD LED delivering 1202 lm at 5700K with CRI 80, 8.33 W of power consumption and an efficacy of 144 lm/W.

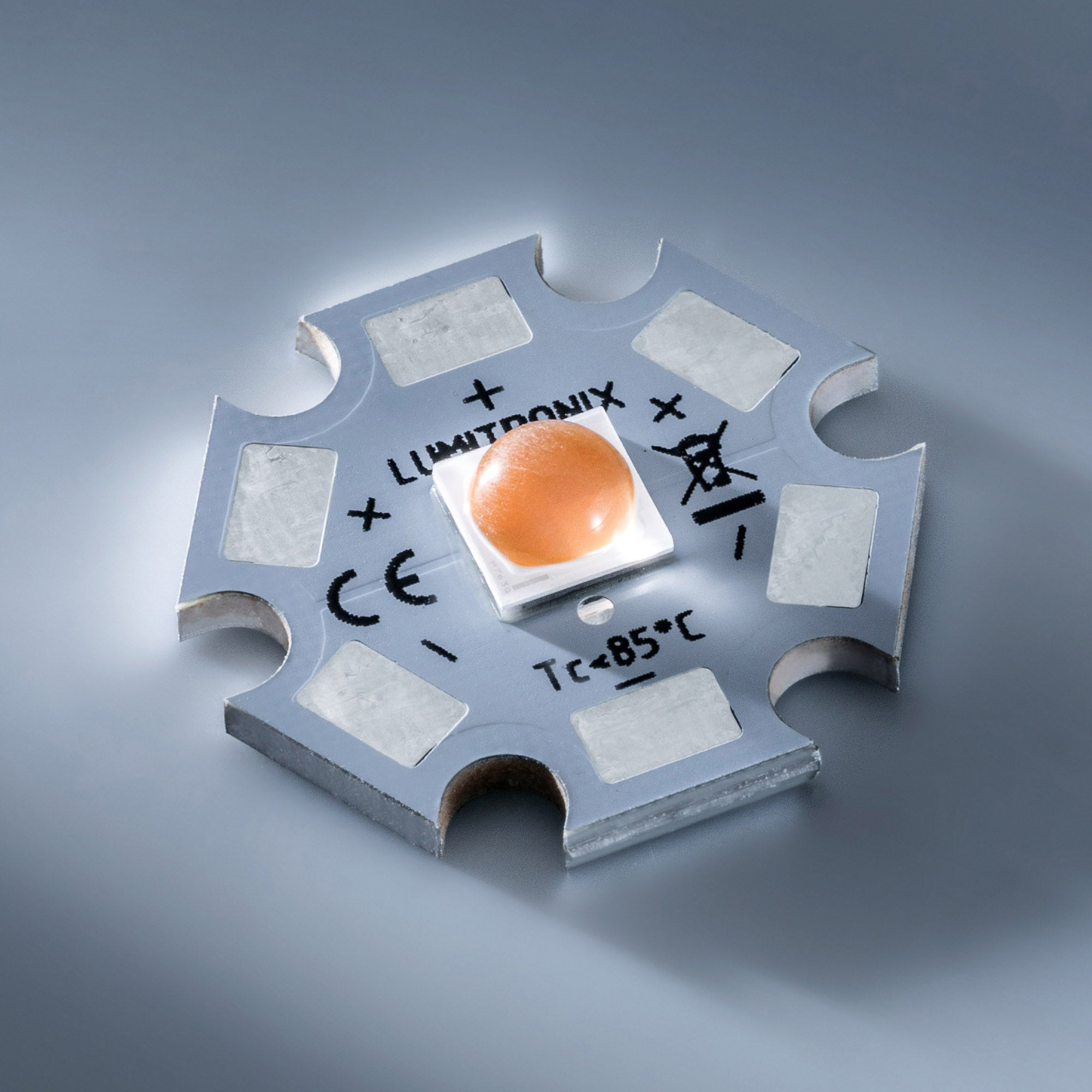

The LED is supplied ready-mounted on a star-shaped metal-core board. This saves the reflow soldering step, which on a modern high-power package is not something that can reliably be done by hand, and the metal core conducts the heat straight into the heat sink. For prototyping, small series and repairs, the pre-mounted version is by far the fastest route from component to working light source.
The LED is operated with constant current and must be mounted on an adequate heat sink. Junction temperature is the single most important factor for both light output and lifetime: run within specification, a brand LED of this class holds its luminous flux and its colour point for tens of thousands of hours.
Why we build with Nichia LEDs
Nichia is a major Japanese LED manufacturer and one of the companies closely associated with the development and commercialisation of high-brightness blue and white LED technology. Its professional lighting LEDs are selected for well-documented optical and electrical characteristics, tight binning options and long-term characterisation. For a luminaire maker, that means the PCB, driver and thermal design can be built around defined forward-voltage, flux, colour and temperature limits instead of anonymous components whose behaviour may change from one batch to the next.
Technical features

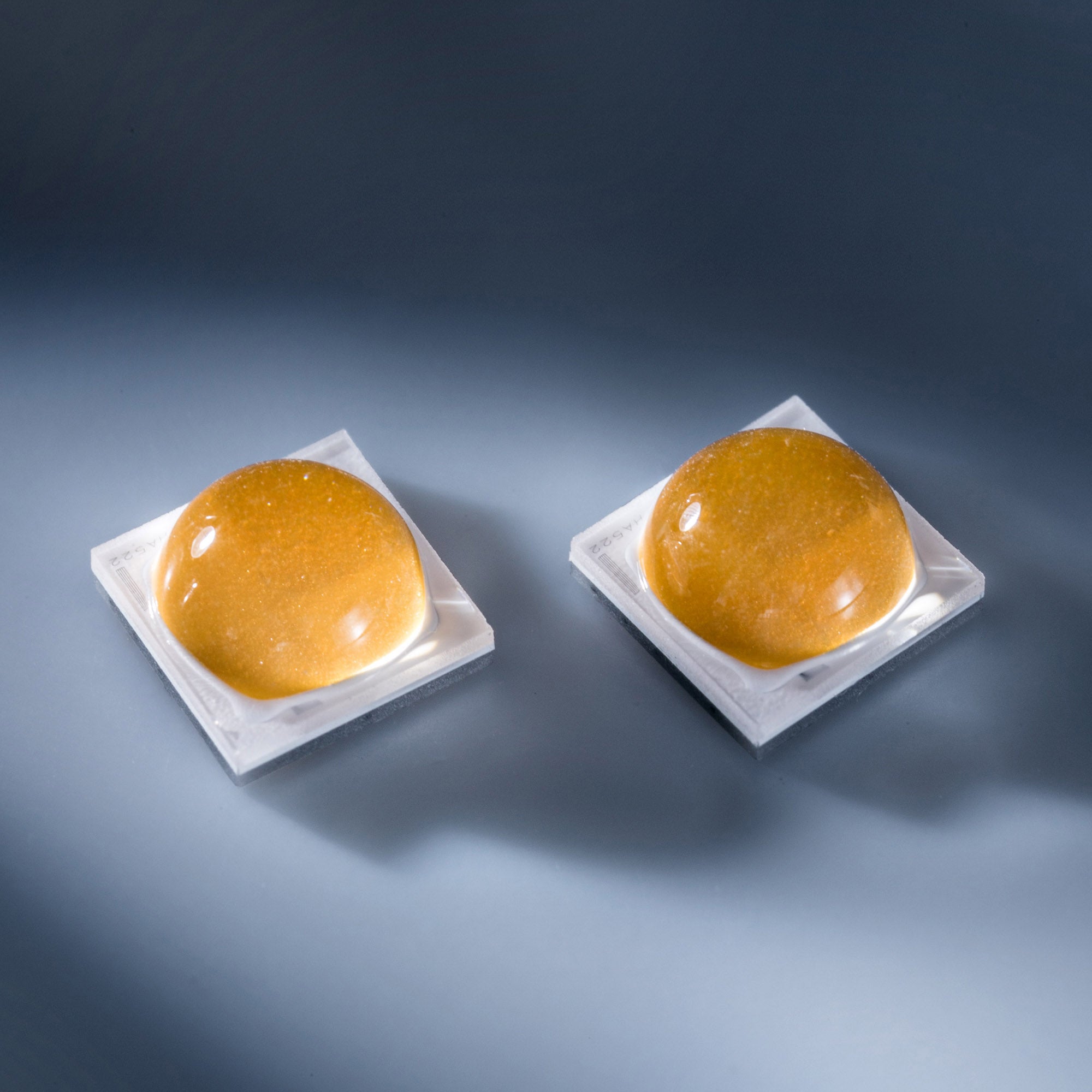

- Nichia NV4W144ART LED package
- Colour temperature: 5700K (Cold White)
- Colour rendering index: CRI 80
- Luminous flux: 1202 lm (typical)
- Power consumption: 8.33 W
- Luminous efficacy: 144 lm/W
- Operating point: 700 mA at 11.9 V
- Dimensions: 20 x 20 mm
- Manufacturer part number: NV4W144ART
Applications
- Spotlights and downlights
- Industrial and machine lighting
- Shop and accent lighting
- Architectural lighting
- Custom luminaire development
| SKU | 43113 |
|---|---|
| Pack Quantity | 1 |
| Numero de LEDs por unidad de venta | 1 |
| Tamano LED (mm) | 5x5 |
| Familia de LED | Nichia NV4 Series |
| Paquete de instalacion LED | PCB estrella |
| Ind. reproduccion del Color | 80 |
| Color | Blanco frio |
| Temperatura del color | 5700K |
| Flujo luminoso Tipo (lm) | 1202 |
| Corriente de avance LED Typ. | 700ma |
| Tensión directa (V) | 11.9 |
| LED Power (W) | 8.33 |
| Eficacia luminosa | 144 |
| Codigo de producto del fabricante | NV4W144ART |
| Fabricante | Nichia (Japan) |
| Dimensiones: Longitud (cm) | 2 |
| Dimensiones: Ancho (mm) | 20 |
