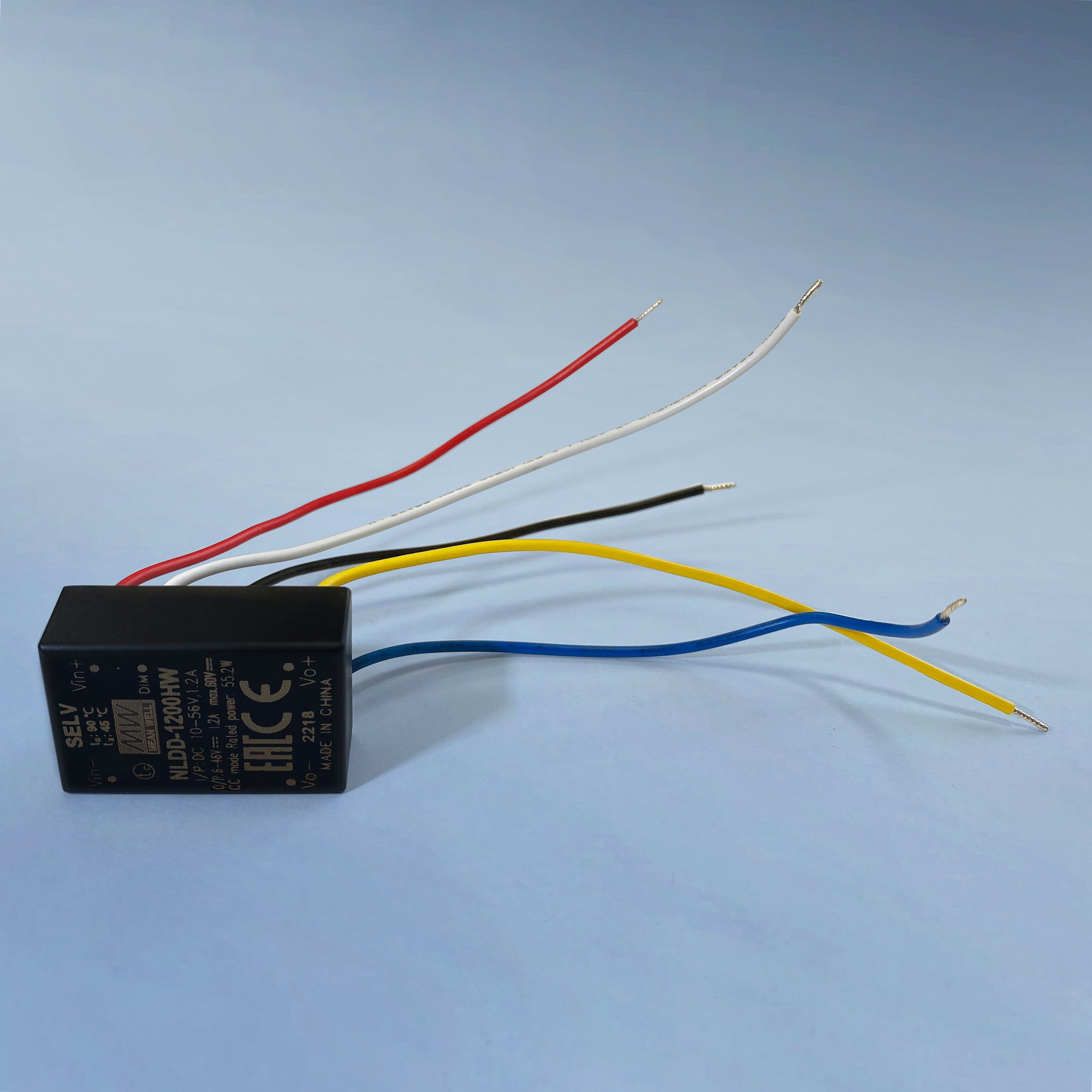

Constant Current LED Driver Mean Well NLDD-1200HW 1200mA 10-56VDC to 6-46VDC PWM Remote On/Off

Constant Current LED Driver Mean Well NLDD-1200HW 1200mA 10-56VDC to 6-46VDC PWM Remote On/Off

This product is a compact constant current LED driver from Mean Well, delivering a regulated 1200 mA output.

The NLDD-HW series is a step-down driver designed to be fed from an existing DC supply rather than from the mains. That is a very practical architecture for multi-channel installations: one mains power supply feeds a DC bus, and a small NLDD driver at each luminaire sets the exact current that particular LED module needs. It keeps the mains wiring to a minimum and makes the system easy to extend.

The driver supports PWM dimming and remote on/off, so it integrates directly into a control system, and it comes with wire leads for a fast connection. Its very compact dimensions allow it to be fitted inside the luminaire body.

About Mean Well

Mean Well is one of the largest manufacturers of standard power supplies worldwide and a reference brand in LED drivers. The company publishes complete electrical, thermal and lifetime data for every model, and its drivers carry the international safety approvals needed for professional luminaires. For a lighting product, the driver is usually the component that fails first, so specifying a documented, approved driver is the cheapest reliability decision in the whole design.

Technical features

• Power consumption: 55.2 W
• Output current: 1200 mA constant current
• Output voltage range: 6 to 46 V
• Dimensions: 32.1 x 20.5 x 12.5 mm
• Dimmable
• Warranty: 3 years
• Weight: 50 g
• Manufacturer part number: NLDD-1200HW
• EAN: 4062986003808

Applications

• Multi-channel LED installations
• Custom and OEM luminaires
• Architectural and shop lighting
• Machine and industrial lighting
