BackMatrix-49-2080 Ultra-wide light distribution Nichia Cube LED Module 49 LEDs 28x28cm 24V 2700K Warm White 1190lm (14000 lm/sqm)
- Large-area 24 V BackMatrix LED module with ultra-wide light distribution
- 49 Nichia Cube LEDs, 2700K Warm White, CRI 80+
- 1190 lm from only 9.6 W – 124 lm/W
- Approx. 14000 lm/m² luminous flux density
- 120° beam angle and 3-Step MacAdam binning
- 280 x 280 x 6.65 mm rigid module
- PWM dimmable; no additional cooling required under specified conditions
- Made in Germany, >60,000 h L80B10C1 lifetime, 3-year warranty

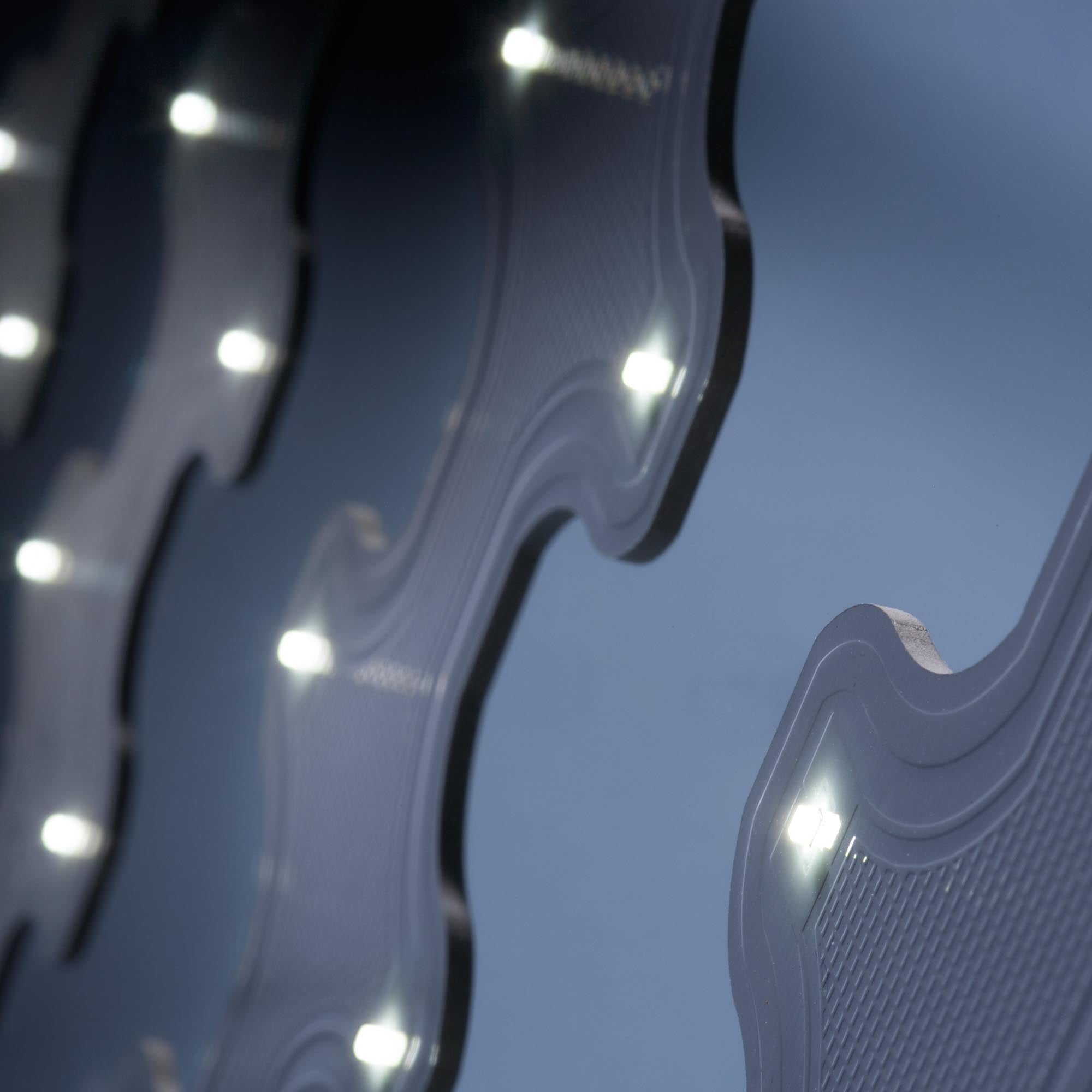

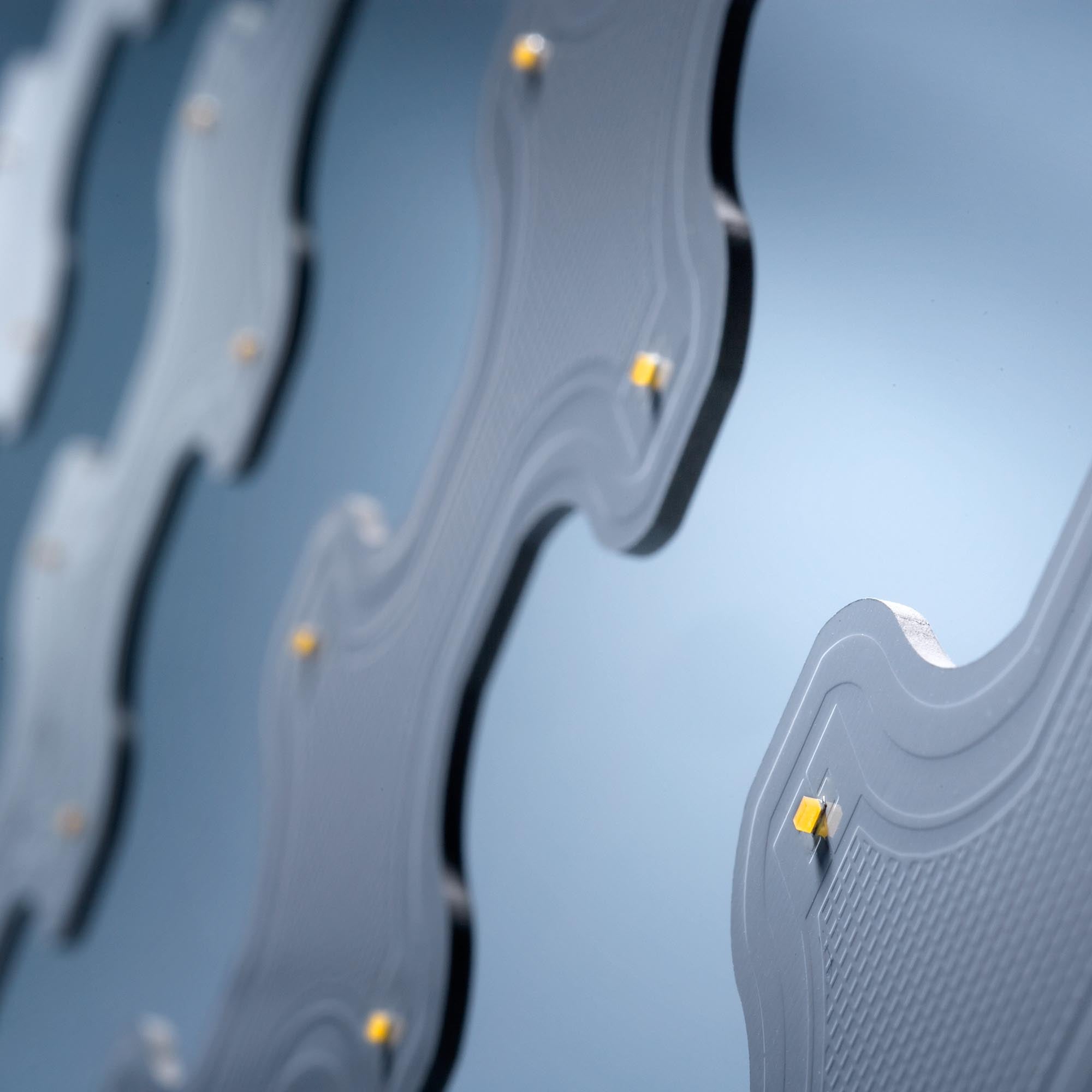

The BackMatrix-49-2080 Ultra-wide light distribution Nichia Cube LED Module 49 LEDs 28x28cm 24V 2700K Warm White 1190lm (14000 lm/sqm) is a large-area 24 V LED module from our BackMatrix family. It uses 49 Nichia Cube LEDs and delivers 1190 lm of warm white light at 2700K with CRI 80+, while consuming only 9.6 W. With an efficacy of 124 lm/W and an ultra-wide light distribution, it is designed for efficient, homogeneous illumination over large surfaces.

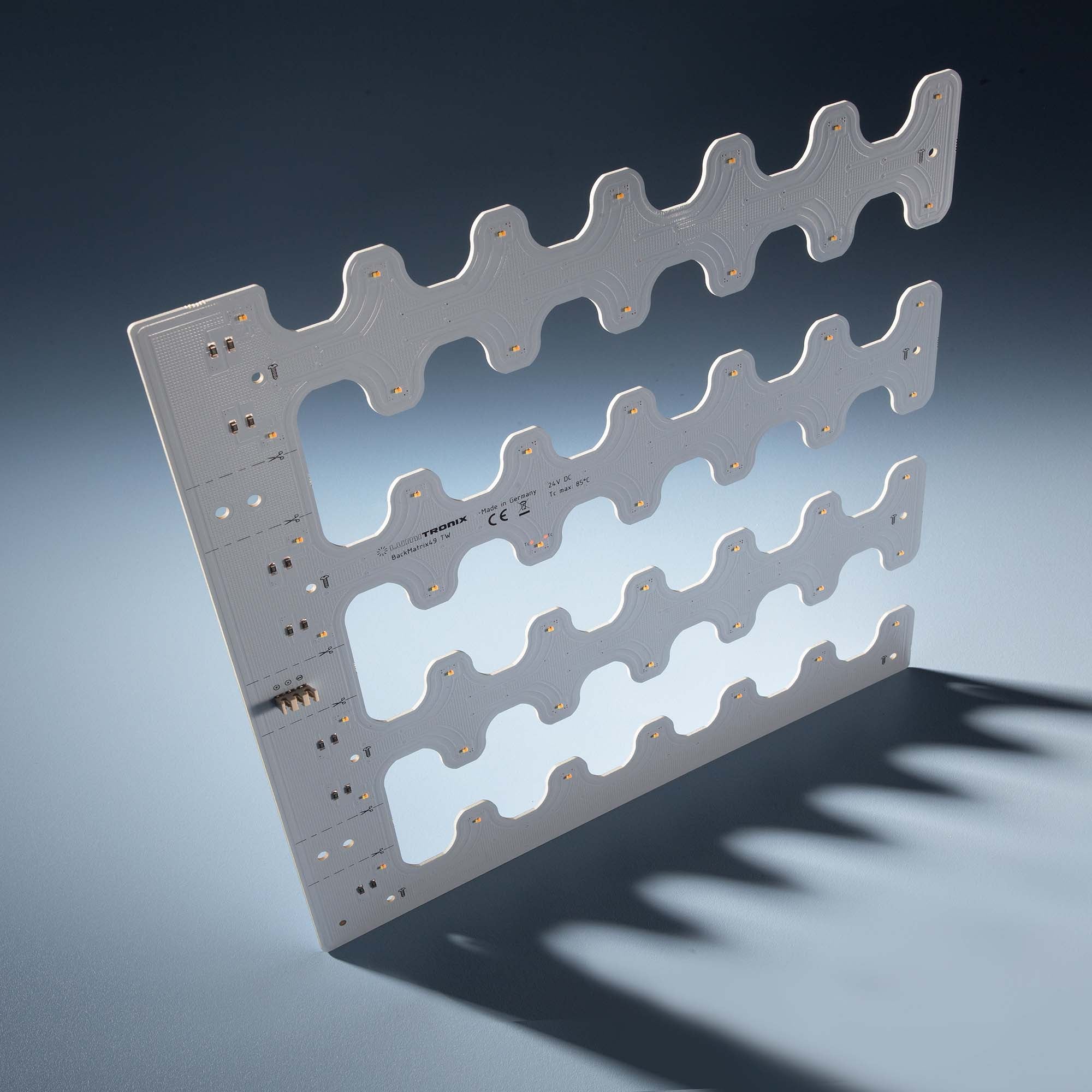

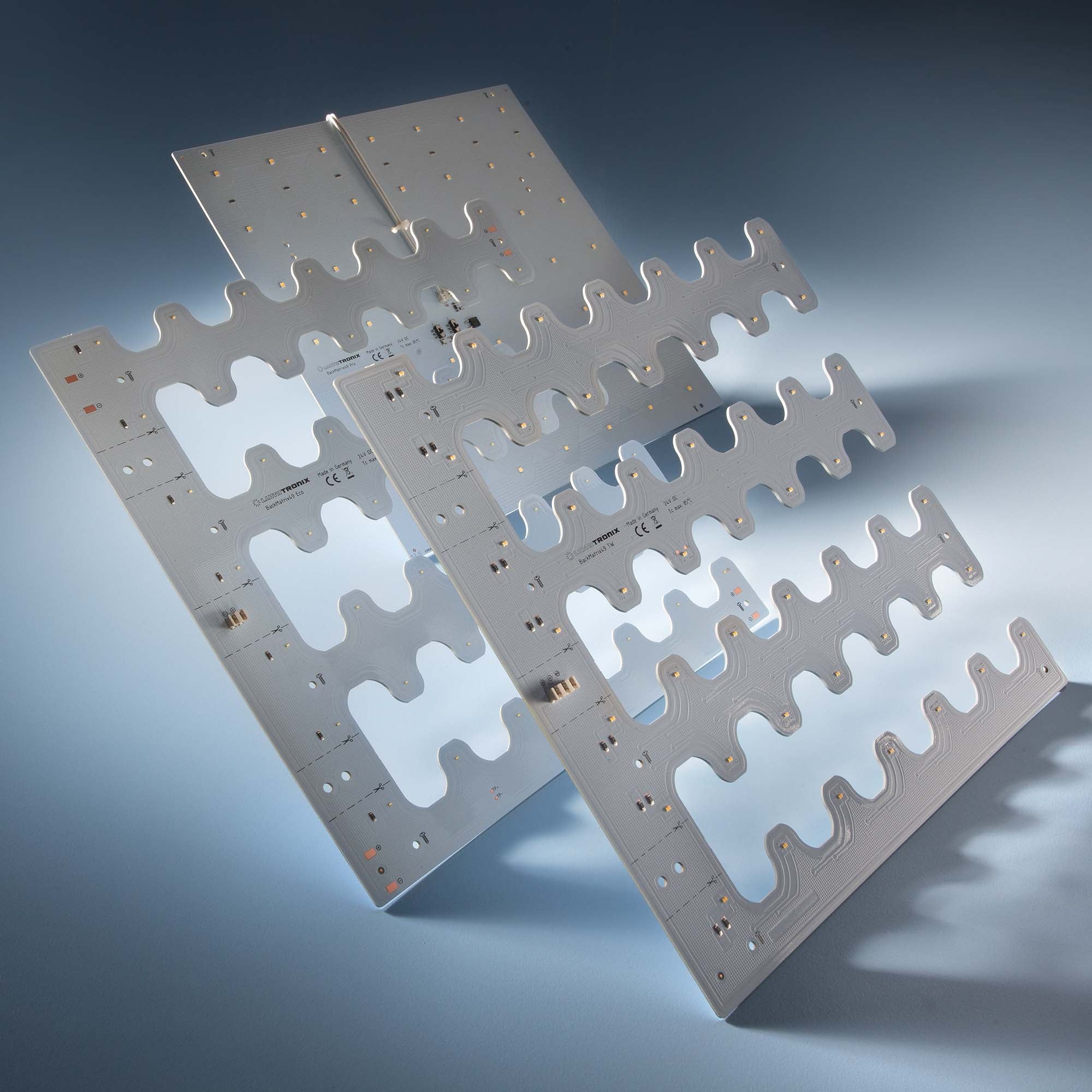

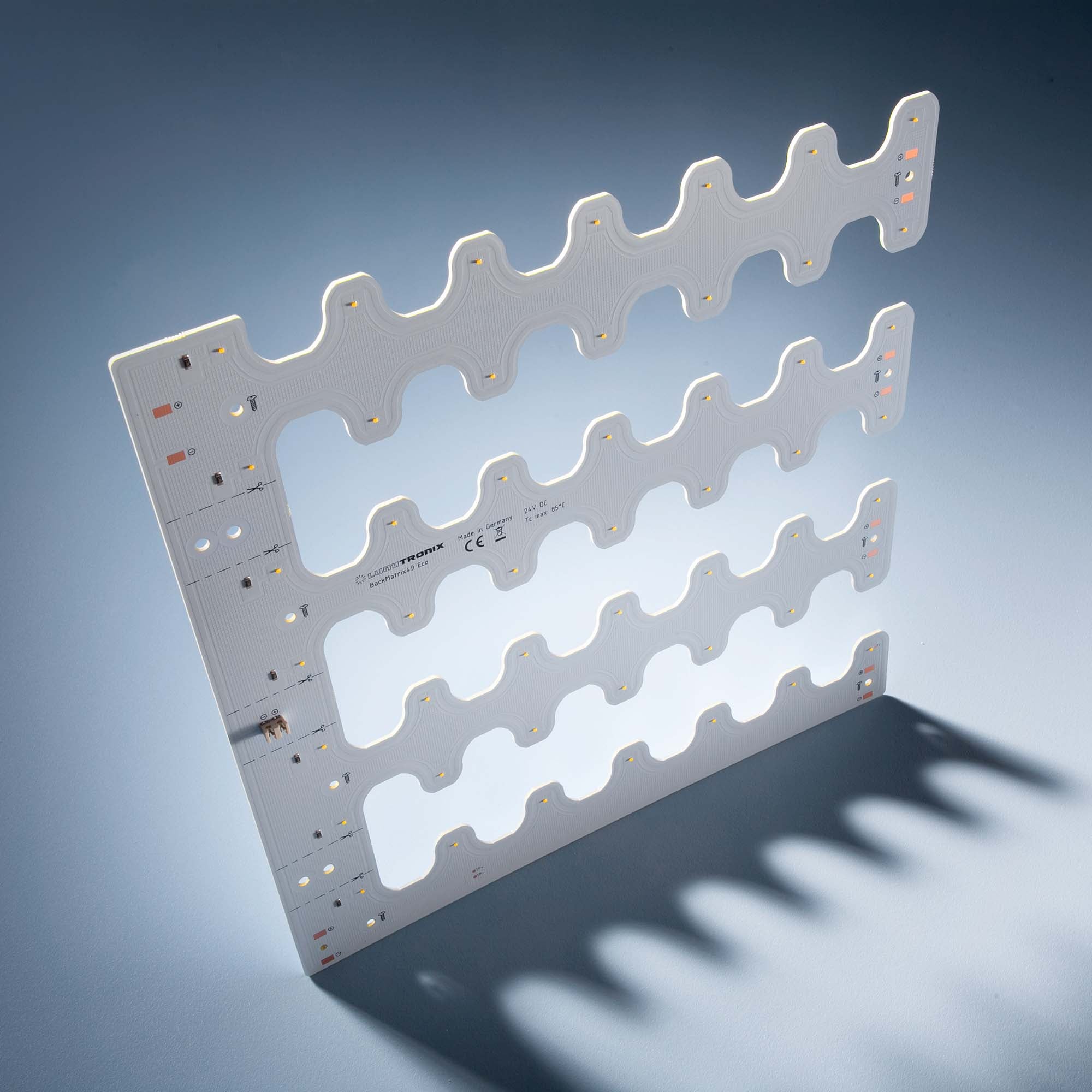

The BackMatrix geometry is optimized for light boxes, luminous ceilings, signage and other applications where a uniform luminous surface is more important than a narrow beam. The 280 x 280 mm board distributes the LEDs over a large area and the 120° beam helps the light blend behind a suitable diffuser, allowing shallower constructions with fewer visible hotspots.
The module operates from 24 V constant voltage and draws approximately 399 mA at the reference operating point. PWM dimming is supported with a suitable driver. Nichia LEDs are selected in 3-Step MacAdam binning for good colour consistency across larger installations, and the module is specified for more than 60,000 hours L80B10C1 lifetime. The design does not require additional cooling under the specified operating conditions.
Made in Germany – controlled production for professional installations
We manufacture the BackMatrix-49-2080 in Germany on automated SMD production lines and inspect the modules electrically before shipment. Controlled assembly, defined component sourcing and documented electrical and photometric specifications are especially important in large illuminated surfaces, where differences between modules become immediately visible.
Why Nichia LEDs
Nichia is one of the most established LED manufacturers worldwide and is known for high efficacy, colour consistency and long-term reliability. Using tightly binned Nichia LEDs helps keep brightness and colour appearance consistent when several BackMatrix modules are combined in one installation.
The module is covered by a 3-year warranty and is designed for continuous professional use.
Technical features
- 49 Nichia Cube LEDs
- Colour temperature: 2700K Warm White
- Colour rendering index: CRI 80+
- Luminous flux: 1190 lm
- Approx. luminous flux density: 14000 lm/m²
- Power consumption: 9.6 W
- Luminous efficacy: 124 lm/W
- Operating voltage: 24 V constant voltage
- Reference current: 399 mA
- Beam angle: 120°
- Binning: 3-Step MacAdam
- Dimensions: 280 x 280 x 6.65 mm
- Dimmable by PWM with a suitable driver
- Rated lifetime: >60,000 h L80B10C1
- Photobiological risk group: RG0
- Energy efficiency class: E
- Made in Germany
- Warranty: 3 years
Applications
- Luminous ceilings and large-area architectural lighting
- Light boxes, advertising signs and displays
- Backlighting behind diffusers
- Trade fair and exhibition construction
- Custom professional luminaires requiring a broad, uniform light distribution
| SKU | 45311 |
|---|---|
| Weight brut (g) | 166.000000 |
| Color | Blanco calido |
| Temperatura del color | 2700K |
| Ind. reproduccion del Color | 80 |
| Bright like (W) | 79 |
| Flujo luminoso Tipo (lm) | 1190 |
| Eficacia luminosa | 124 |
| Energy Class 2022 | E |
| Energia (W) | 9.60 |
| Regulable | Si |
| Angulo de vision | 120° |
| Garantia (meses) | 36 |
| Vida util residencial, 3h diario (anos) | 55 |
| Vida util del producto (horas) | 60000 |
| Vida util comercial, 12h diario (anos) | 14 |
| Codigo de producto del fabricante | 45311 |
| Gama de productos | BackMatrix2080 |
| Tipo de tira | Rigido |
| Numero de LEDs por unidad de venta | 49 |
| Diimensiones | 280 x 280 x 6.65 mm |
| Dimensiones: Longitud (cm) | 280 |
| Dimensiones: Ancho (mm) | 280 |
| Dimensiones: Altura (mm) | 6.65 |
| Fabricante | Lumistrips |
| Manufacturer Part Number | 4260127455473 |
| Tensión directa (V) | 24 |
