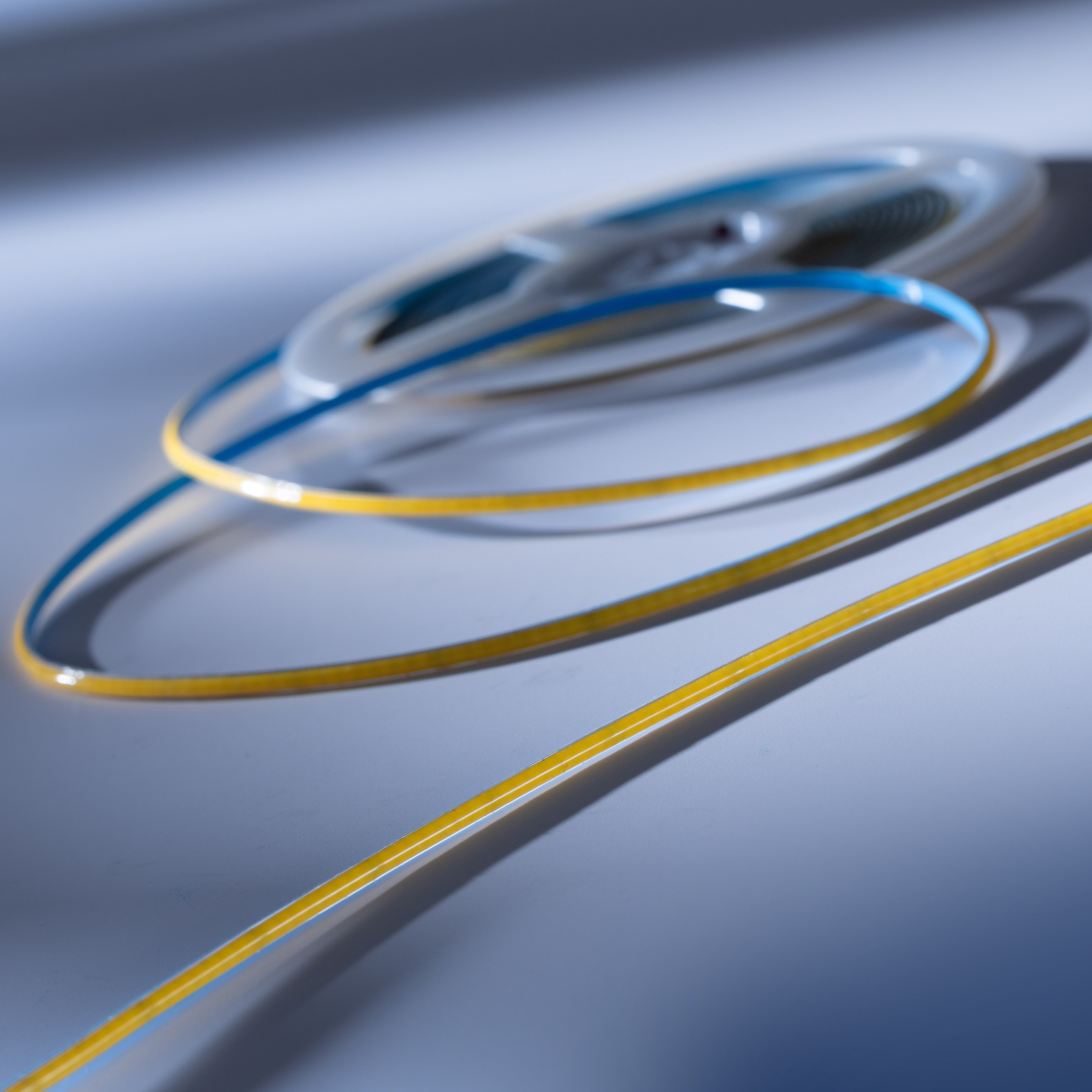

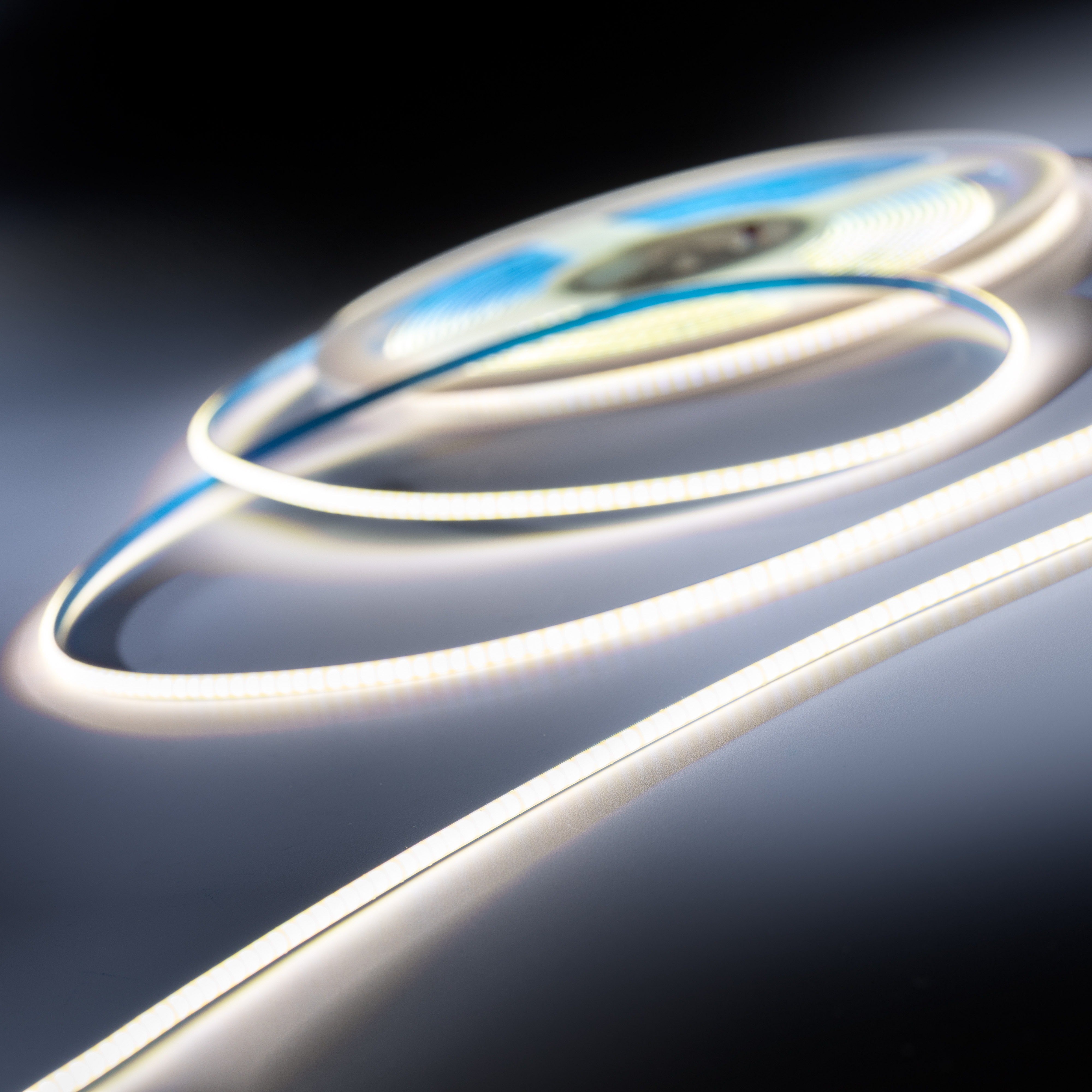

SlimFlex COB Economy LED Strip Cold White 6200K CRI90 2400lm 24V 24W 384 LEDs/m 5m (480m/m 4.48W/m)
- Flexible COB LED strip – a continuous line of light with no visible dots
- Luminous flux 2400 lm (480 lm/m) at 6200K, CRI 90
- Power consumption 24 W at an efficacy of 90 lm/W
- Beam angle 180°
- Dimensions 5000 x 3 x 2 mm
- Made in Germany with brand LEDs, automated placement and full electrical testing
- 5 years warranty
- Protection class IP20
SlimFlex COB Economy LED Strip Cold White 6200K CRI90 2400lm 24V 24W 384 LEDs/m 5m (480m/m 4.48W/m)
This product is a flexible COB LED strip that produces a continuous line of light with no visible individual LEDs. It delivers 2400 lm at 6200K with CRI 90, 24 W of power consumption and an efficacy of 90 lm/W.
A COB strip replaces the row of discrete LED packages with a dense array of small chips under a common phosphor layer. The result is a homogeneous luminous line instead of a chain of dots, which means no dotting through a diffuser, no shadow pattern at short distances, and a usable result even when the strip is installed without a cover. For cove lighting, furniture lighting and any application where the strip is visible or sits close behind its diffuser, this is a visibly better result than a conventional SMD strip.
The strip is flexible along its length, has a self-adhesive backing and runs on 24 V constant voltage. It can be cut at the marked intervals and dimmed with any standard constant-voltage dimmer. For continuous operation at full power, mounting in an aluminium profile is recommended.
Made in Germany – for reliable quality
This Lumistrips light engine is developed and manufactured at our production site in Germany. The PCB is assembled on controlled SMD equipment and the finished boards are visually inspected and electrically tested. We use specified, traceable LED components and defined production parameters so that current, voltage, light output and colour remain reproducible from batch to batch.
The difference from generic LED tape or anonymous modules is control of the complete light engine: copper layout, soldering quality, LED spacing, component selection and thermal path are defined together. That gives luminaire makers a more predictable component for continuous operation, easier qualification and repeat orders that behave like the original build.
Technical features
- 1920 LEDs (COB)
- Colour temperature: 6200K (Cold White)
- Colour rendering index: CRI 90
- Luminous flux: 2400 lm (typical)
- Luminous flux per metre: 480 lm/m
- Power consumption: 24 W
- Luminous efficacy: 90 lm/W
- Operating voltage: 24 V
- Beam angle: 180°
- Board type: Flexible
- Dimensions: 5000 x 3 x 2 mm
- Protection class: IP20
- Dimmable
- Rated lifetime: 60000 h
- Warranty: 5 years
- Weight: 80 g
Applications
- Linear luminaires and light lines
- Cove and indirect lighting
- Shelf, cabinet and display lighting
- Shop and commercial lighting
- Office and task lighting
- Architectural and decorative lighting
| SKU | 42875 |
|---|---|
| Weight brut (g) | 80.000000 |
| Color | Blanco frio |
| Temperatura del color | 6200K |
| Ind. reproduccion del Color | 90 |
| Flujo luminoso por metro | 480 |
| Bright like (W) | 160 |
| Flujo luminoso Tipo (lm) | 2400 |
| Eficacia luminosa | 90 |
| Energy Class 2022 | G |
| Energia (W) | 24 |
| Regulable | Si |
| Angulo de vision | 180° |
| Garantia (meses) | 60 |
| Vida util residencial, 3h diario (anos) | 55 |
| Vida util del producto (horas) | 60000 |
| Vida util comercial, 12h diario (anos) | 14 |
| Codigo de producto del fabricante | 42875 |
| Gama de productos | SlimFlex COB |
| Tipo de tira | Flexible |
| LED por metro | 384 |
| Numero de LEDs por unidad de venta | 1920 |
| Diimensiones | 5000 x 3 x 2 mm |
| Dimensiones: Longitud (cm) | 500 |
| Dimensiones: Ancho (mm) | 3 |
| Dimensiones: Altura (mm) | 2 |
| Se puede cortar a (mm) | 41.67 |
| Fabricante | Lumistrips |
| Tensión directa (V) | 24 |
