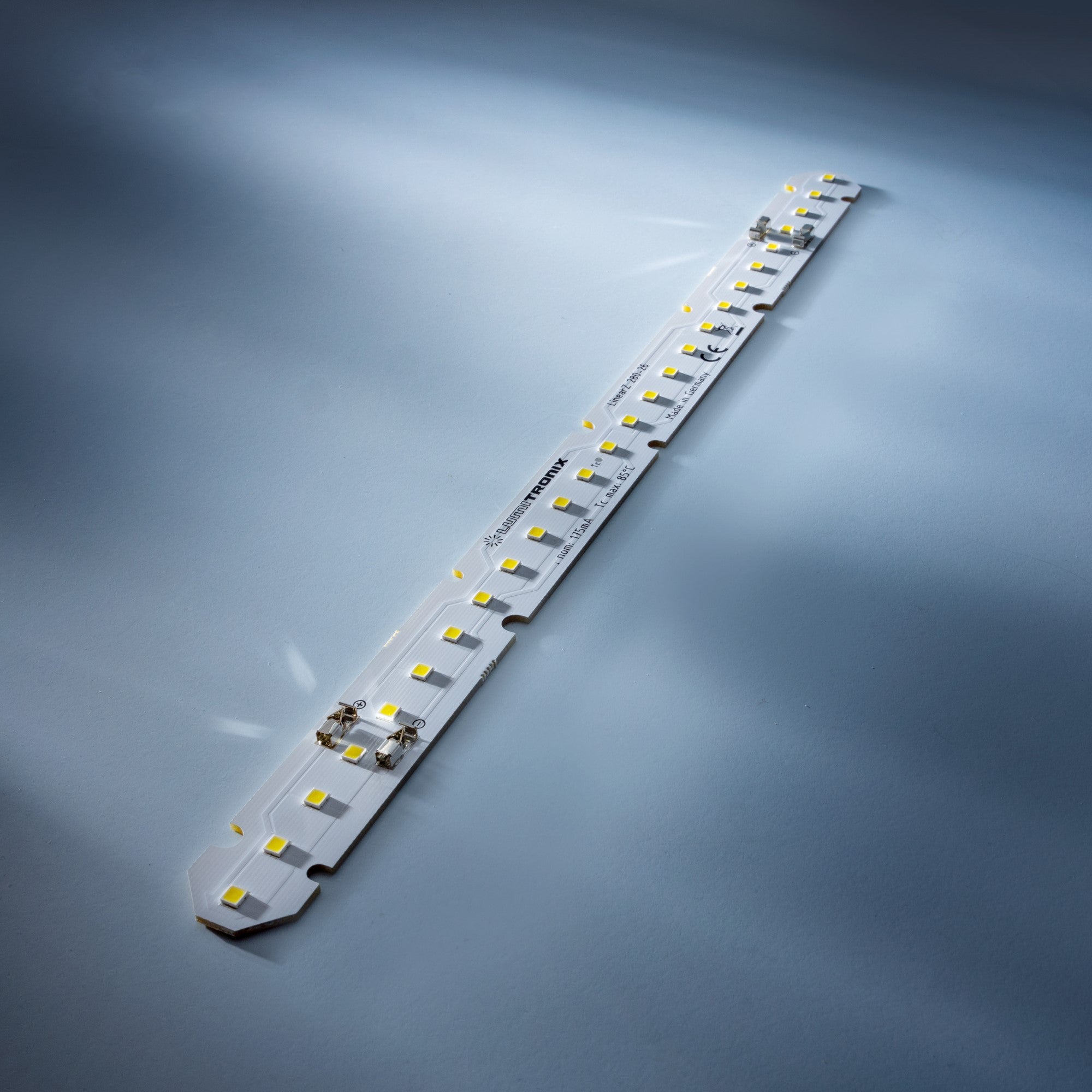

LumiBar-28-3095 Nichia H6 LED Strip warm white CRI95 2700K 880lm 175mA 36V 26 LEDs 28cm module (3100lm/m 22W/m)
• 26 × Nichia H6 LEDs with very high color rendering (CRI 95)
• Warm white 2700 K light for comfortable, natural illumination
• 880 lm luminous flux at only 6.4 W for efficient performance
• Zhaga-compliant for standardized luminaire integration
• Solderless connectors for fast and secure installation
• Homogeneous 120° beam angle with no visible hotspots
• Long lifetime of up to 60,000 hours
• Dimmable and suitable for professional lighting systems
• Designed and manufactured in Germany by Lumistrips
LumiBar 280-26 LED Module – Zhaga-Compliant Linear LED Bar with Nichia H6 CRI95 LEDs
The LumiBar 280-26 is a high-performance Zhaga-compliant LED module developed and manufactured by Lumistrips in Germany for professional linear lighting applications requiring exceptional light quality, reliability, and ease of integration. Equipped with 26 Nichia H6 LEDs operating at 2700 K warm white and delivering a very high color rendering index of CRI 95, this module ensures accurate color reproduction and a natural, high-quality light output suitable for demanding architectural and commercial environments.
With a luminous flux of 880 lm at only 6.4 W, the LumiBar 280-26 achieves excellent efficiency while maintaining superior visual comfort. The tightly spaced LED configuration and wide 120° beam angle create a continuous, homogeneous line of light without visible hotspots, making it ideal for modern linear luminaires, display lighting, hospitality, and residential applications.
Premium Nichia H6 LEDs – Exceptional Color Quality and Efficiency
The LumiBar 280-26 utilizes Nichia H6 CRI95 LEDs, one of the most advanced LED technologies available for professional lighting applications. The H6 Series represents a new generation of high-CRI LEDs, combining superior color rendering with improved luminous efficacy.
Nichia achieves this performance through its proprietary TriGain® phosphor technology and advanced KSF narrowband red phosphor, optimizing the spectral distribution for excellent color fidelity. With CRI ≥95, R9 ≥80, and R15 ≥96, the module delivers outstanding rendering of reds, skin tones, and natural materials.
The H6 Series represents the successor to the renowned Nichia Optisolis™ technology, providing comparable light quality with significantly improved efficiency and performance.
Zhaga-Compliant Design for Easy Integration and Replacement
The LumiBar 280-26 follows the Zhaga interface specifications, ensuring mechanical, optical, and electrical compatibility with standardized luminaire designs. This allows lighting manufacturers and integrators to simplify product development, reduce engineering time, and enable easy module replacement or upgrades.
The module features a solderless connection system, enabling fast, secure installation without soldering. Its optimized thermal design allows operation without requiring an additional heat sink in many luminaire configurations, enabling compact and space-efficient fixture designs.
Premium Nichia H6 LEDs for Exceptional Light Quality
At the core of the LumiBar 280-26 are Nichia H6 LEDs, one of the most advanced LED technologies available for professional lighting. These LEDs provide:
-
Excellent color fidelity with CRI 95
-
Warm and comfortable 2700 K light color
-
Long operational lifetime of up to 60,000 hours
-
Stable luminous output and consistent performance over time
This makes the module particularly suitable for applications where light quality directly impacts perception, such as retail, hospitality, museums, residential lighting, and architectural illumination.
Key Technical Features and Benefits
-
Light source: 26 × Nichia H6 CRI95 LEDs
-
Luminous flux: 880 lm
-
Power consumption: 6.4 W
-
Voltage: 36.7 V DC
-
Current: 175 mA
-
Color temperature: 2700 K warm white
-
Color rendering index: CRI 95
-
Beam angle: 120°
-
Lifetime: up to 60,000 hours
-
Dimmable: Yes
-
Module dimensions: 280 × 20 mm
-
Zhaga-compliant interface
-
Solderless electrical connection
-
Energy efficiency class: D (2021 standard)
Designed and Manufactured in Germany by Lumistrips
We design and manufacture LumiBar LED modules in our advanced production facilities in Germany, ensuring the highest standards of quality, consistency, and reliability. Our expertise in LED module engineering allows us to deliver solutions optimized for professional luminaire manufacturers, lighting designers, and system integrators.
In addition to standard products, we offer customization services including tailored lengths, LED selection, color temperature, CRI level, and electrical configuration to meet specific project requirements.
Ideal Applications
The LumiBar 280-26 is ideally suited for:
-
Linear luminaires
-
Architectural lighting systems
-
Retail and display lighting
-
Hospitality lighting
-
Residential luminaires
-
Cove and indirect lighting
-
Custom luminaire development
Reliable, Efficient, and Future-Proof Linear LED Solution
With its combination of Zhaga compatibility, premium Nichia LEDs, high CRI performance, and long lifetime, the LumiBar 280-26 provides a reliable and future-proof solution for professional lighting applications requiring superior light quality and ease of integration.
| SKU | 42611 |
|---|---|
| Color | Blanco calido |
| Temperatura del color | 2700K |
| Ind. reproduccion del Color | 95 |
| Flujo luminoso por metro | 3100 |
| Flujo luminoso Tipo (lm) | 880 |
| Eficacia luminosa | 138 |
| Energy Class 2022 | D |
| Energia (W) | 6.4 |
| Angulo de vision | 120° |
| Garantia (meses) | 60 |
| Vida util del producto (horas) | 60000 |
| Corriente de avance max | 175 |
| Codigo de producto del fabricante | 42611 |
| Gama de productos | Lumibar3098+ |
| Tipo de tira | Rigido |
| LED por metro | 92 |
| Numero de LEDs por unidad de venta | 26 |
| Diimensiones | 280x20 |
| Fabricante | Lumistrips |
| Manufacturer Part Number | 42611 |
